RightMark Audio Analyzer test report

Testing device [ASIO] MOTU Pro Audio 96
Sampling mode 24-bit, 96 kHz
Interface ASIO
Testing chain External loopback (line-out - line-in)
RMAA Version 6.4.5 PRO


20 Hz - 20 kHz filter ON
Normalize amplitude ON
Level change -0.6 dB / -0.6 dB
Mono mode OFF
Calibration singal, Hz 1000
Polarity correct/correct



Summary

Frequency response (from 40 Hz to 15 kHz), dB
+0.03, -0.07
Excellent
Noise level, dB (A)
-118.0
Excellent
Dynamic range, dB (A)
117.3
Excellent
THD, %
0.00024
Excellent
THD + Noise, dB (A)
-107.5
Excellent
IMD + Noise, %
0.00061
Excellent
Stereo crosstalk, dB
-111.4
Excellent
IMD at 10 kHz, %
0.00078
Excellent
General performance

Excellent

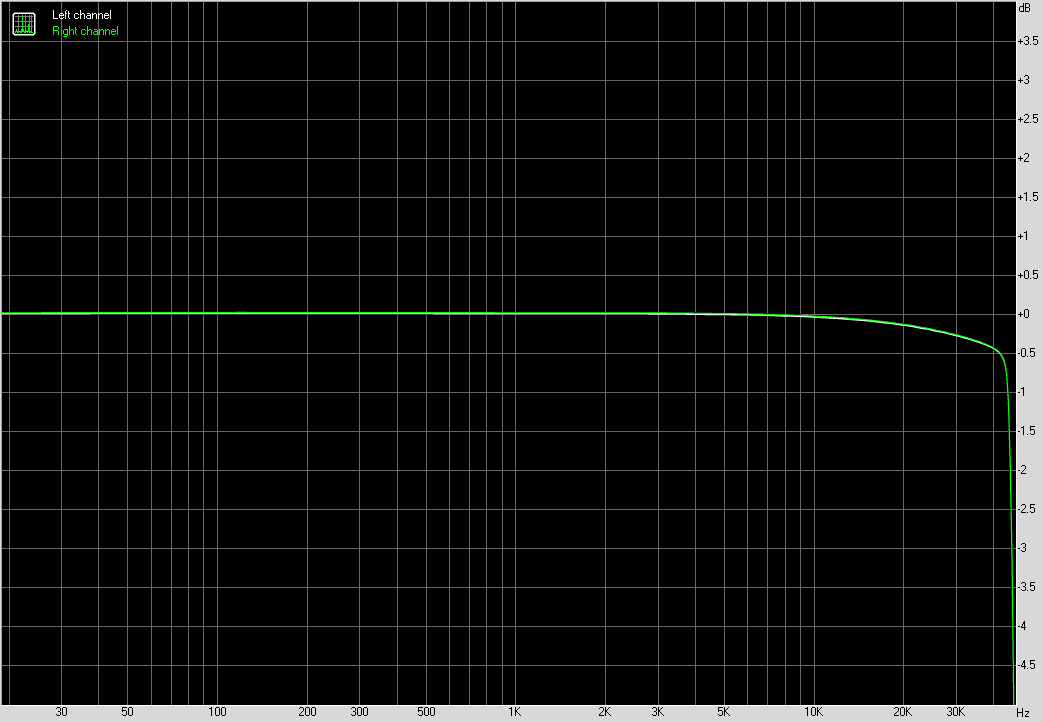

Frequency response

Spectrum graph


Left
Right
From 20 Hz to 20 kHz, dB
-0.14, +0.01
-0.13, +0.03
From 40 Hz to 15 kHz, dB
-0.08, +0.01
-0.07, +0.03

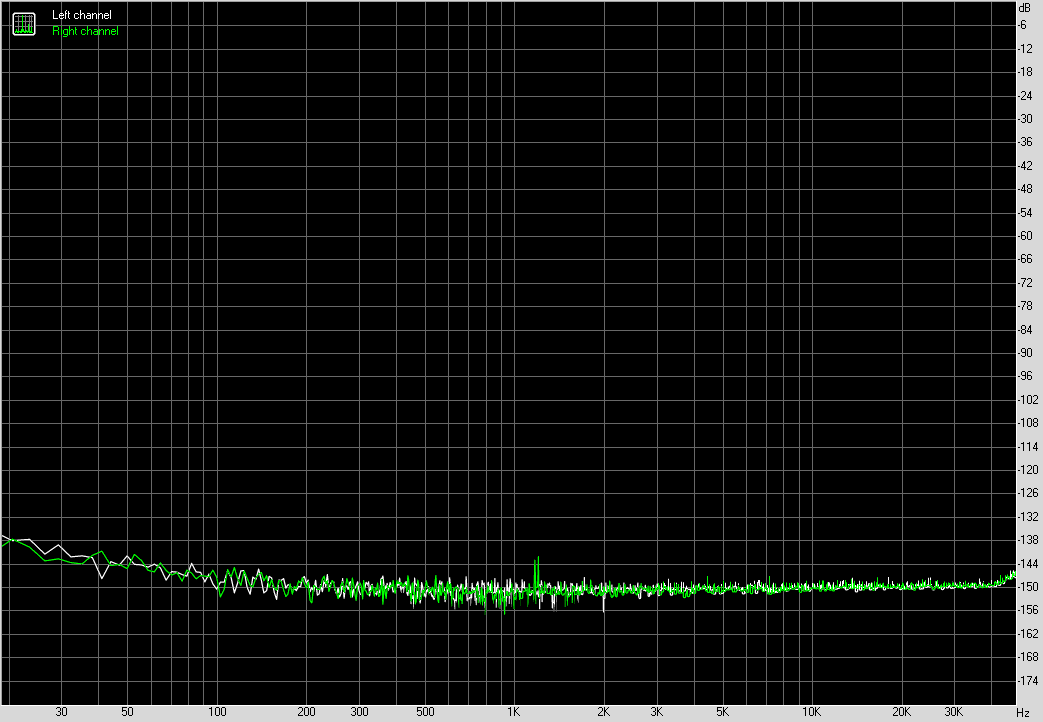

Noise level

Spectrum graph


Left
Right
RMS power, dB
-116.7
-116.7
RMS power (A-weighted), dB
-118.0
-118.1
Peak level, dB FS
-85.5
-86.4
DC offset, %
+0.0
+0.0

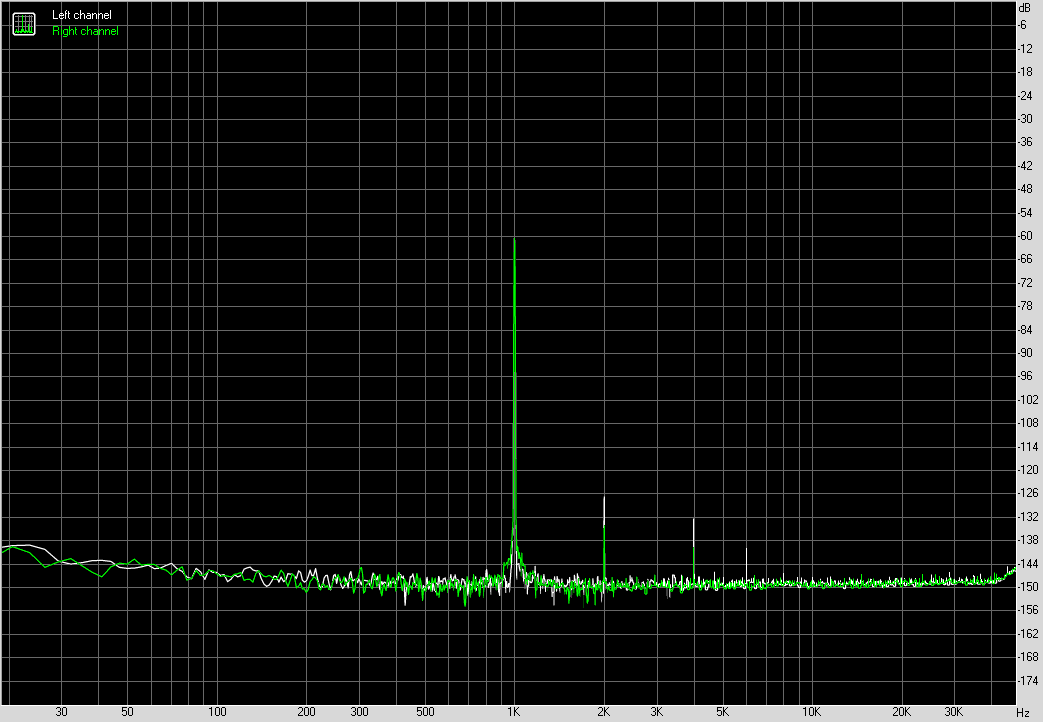

Dynamic range

Spectrum graph


Left
Right
Dynamic range, dB
+116.5
+116.7
Dynamic range (A-weighted), dB
+117.0
+117.5
DC offset, %
-0.00
+0.00

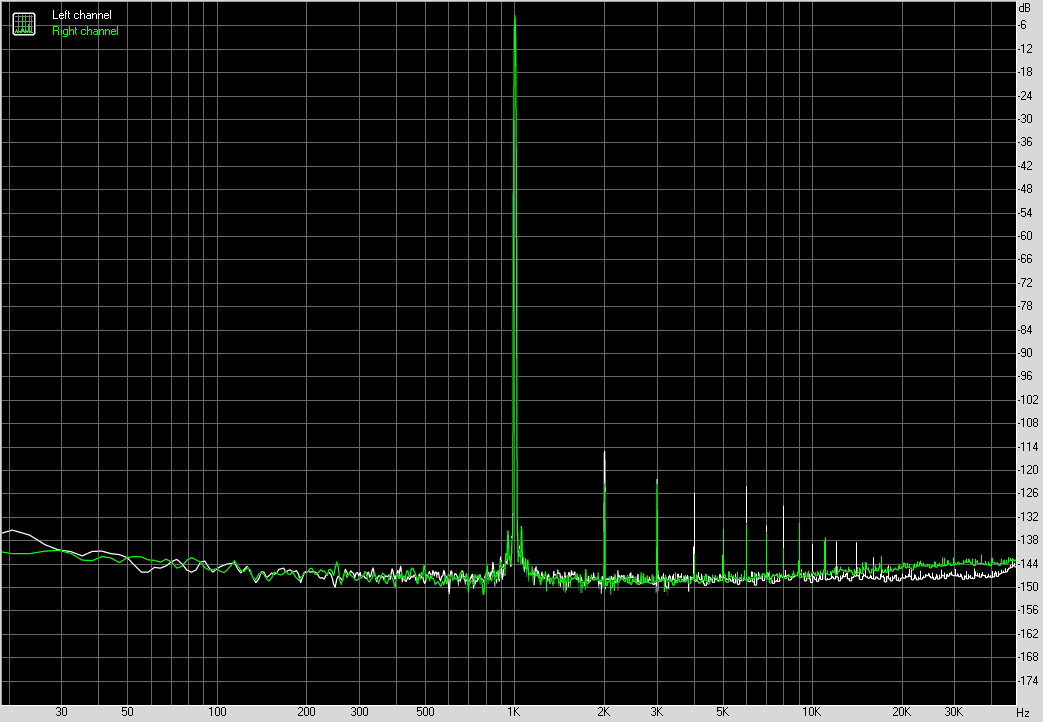

THD + Noise (at -3 dB FS)

Spectrum graph


Left
Right
THD, %
0.00031
0.00016
THD + Noise, %
0.00044
0.00038
THD + Noise (A-weighted), %
0.00049
0.00035

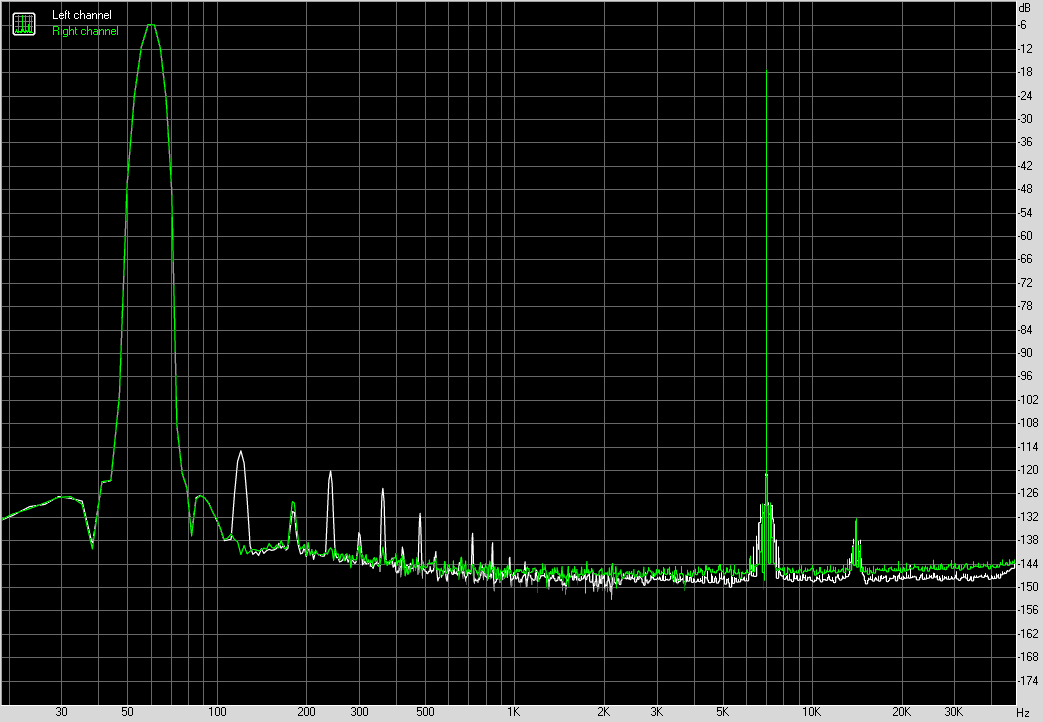

Intermodulation distortion

Spectrum graph


Left
Right
IMD + Noise, %
0.00065
0.00058
IMD + Noise (A-weighted), %
0.00047
0.00049

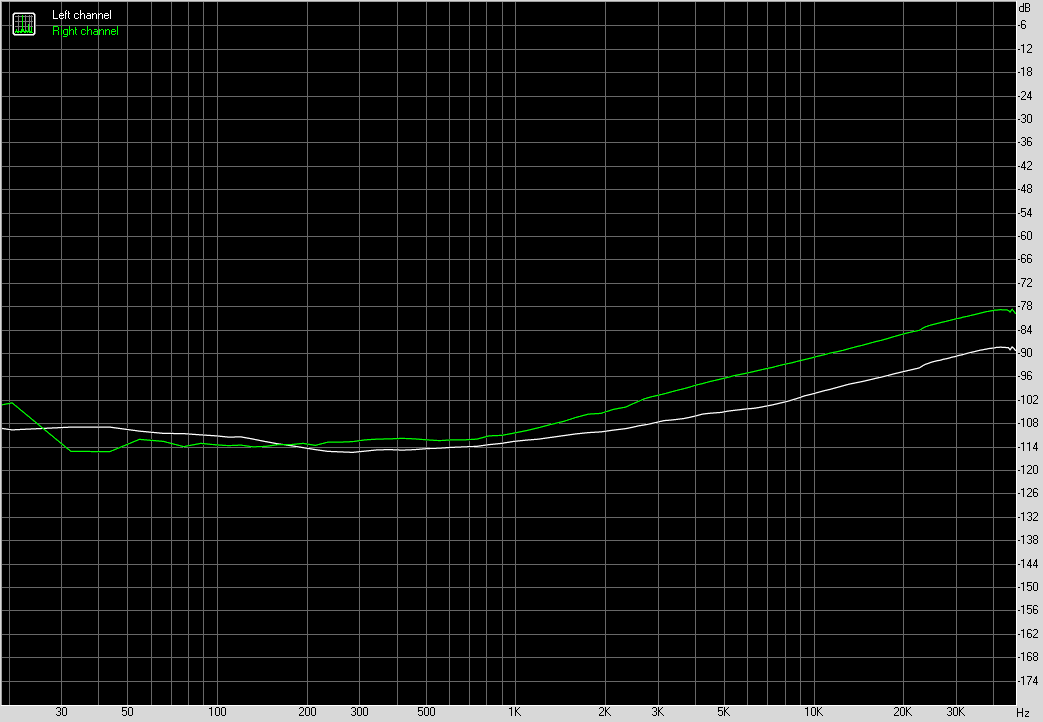

Stereo crosstalk

Spectrum graph


Left
Right
Crosstalk at 100 Hz, dB
-110
-112
Crosstalk at 1000 Hz, dB
-112
-109
Crosstalk at 10000 Hz, dB
-99
-90



IMD (swept tones)

Spectrum graph


Left
Right
IMD + Noise at 5000 Hz,
0.00083
0.00073
IMD + Noise at 10000 Hz,
0.00082
0.00060
IMD + Noise at 15000 Hz,
0.00098
0.00071
